As cities face increasing demands for road maintenance, sustainable infrastructure, and budget management, new pavement technologies have emerged as viable solutions. Among these, PressurePave® and permeable pavements are two innovative options that offer distinct benefits and address different challenges faced by municipalities. Understanding the pros and cons of each system can help city engineers and public works directors make informed decisions when considering these technologies for street preservation and urban planning.
PressurePave®: Overview and Benefits
PressurePave® is a modern pavement preservation system that uses advanced pressure injection technology to treat cracked streets. This system is particularly well-suited for roads with significant cracking, where traditional methods like milling and overlaying are often used. PressurePave® addresses the cracks by sealing them with a stress-absorbing mastic, followed by a thin, durable asphalt layer. This system has proven to be effective in treating streets with Pavement Condition Index (PCI) scores of 40 and above. The primary goal of PressurePave® is to prevent any water from penetrating into the base asphalt layer. This drastically increases longevity of both PressurePave® and the asphalt or concrete surface underneath.
Pros of PressurePave®
1. Cost-Effective Solution: PressurePave® is approximately half the cost of traditional mill and overlay methods. For municipalities with limited budgets, this cost savings can enable more widespread application across urban areas.
2. Quick Application and Traffic Readiness: One of the most significant advantages of PressurePave® is its ability to open roads to traffic within 30 minutes after application. Traditional methods, such as mill and overlay, require road closures for longer periods, disrupting local traffic and businesses.
3. Longevity and Durability: Roads treated with PressurePave® last 12-15 years, providing long-term protection against water infiltration and preventing reflective cracking. This system is designed to maintain its integrity over time, reducing the frequency of maintenance and extending the life of road infrastructure.
4. Seals and Repairs Cracks: PressurePave®'s stress-absorbing mastic effectively seals all cracks, preventing further water penetration into the pavement's base. The asphalt surface on top of the mastic also acts as a seal. This tight asphalt surface does not readily absorb water, allowing the water to wick away to the sides. This helps preserve the integrity of the underlying road structure and reduces the need for future repairs.
5. Versatility: PressurePave® can treat roads with significant cracking that would normally require a full mill and overlay. Its versatility allows for treatment of a wide range of pavement conditions, including cracked, aging, or poorly maintained streets.
Cons of PressurePave
1. Not Suitable for Severe Structural Damage: PressurePave® works best on roads with good structural integrity. It is not a solution for roads suffering from significant subgrade issues, such as severe potholes or structural failures. These issues must be addressed before applying PressurePave®.
2. Limited Drainage Capabilities: While PressurePave® is an excellent option for sealing cracks and improving rideability, it does not offer the same drainage benefits as other solutions, such as permeable pavements, which may be a consideration in areas with high water run-off or flooding issues.
Permeable Pavements: Overview and Benefits
Permeable pavements are designed to allow water to pass through the surface, reducing stormwater runoff and increasing groundwater recharge. This system is primarily used in areas where stormwater management is a priority, such as parking lots, residential streets, and urban areas prone to flooding. Permeable pavements can be constructed from a variety of materials, including porous asphalt, pervious concrete, and interlocking concrete pavers.
Pros of Permeable Pavements
1. Stormwater Management: One of the primary advantages of permeable pavements is their ability to manage stormwater runoff. By allowing water to pass through the surface, they reduce the burden on urban drainage systems, helping prevent flooding and erosion.
2. Groundwater Recharge: Permeable pavements promote groundwater recharge by allowing rainwater to filter through the surface, replenishing local water tables and contributing to environmental sustainability.
3. Environmental Benefits: By reducing stormwater runoff and preventing water from carrying pollutants into nearby water bodies, permeable pavements can improve water quality and contribute to a more sustainable urban ecosystem.
4. Cool Pavement Benefits: Some permeable pavements can help reduce urban heat islands, as they tend to stay cooler than traditional pavements, which can absorb and retain heat. This can contribute to lowering temperatures in urban areas and improving comfort for residents.
Cons of Permeable Pavements
1. Higher Initial Installation Costs: The installation of permeable pavements can be more expensive than traditional asphalt or concrete, especially if the necessary underlying infrastructure (such as an appropriate subgrade and drainage system) is not already in place.
2. Maintenance Challenges: Permeable pavements require regular maintenance to prevent clogging. Over time, debris, dirt, and organic matter can fill the pores, reducing the surface's permeability. This requires periodic cleaning to maintain optimal function, adding to maintenance costs.
3. Limited Durability in High-Traffic Areas: Permeable pavements are not as durable as traditional pavements when subjected to high traffic volumes. They may wear down faster under heavy load conditions, which can limit their applicability in busy streets or highways.
4. Not Suitable for All Regions: In areas with freezing temperatures, the water that passes through permeable pavements can freeze during winter months, potentially leading to cracking or surface damage. In these regions, special considerations and materials are required to prevent freeze-thaw damage.

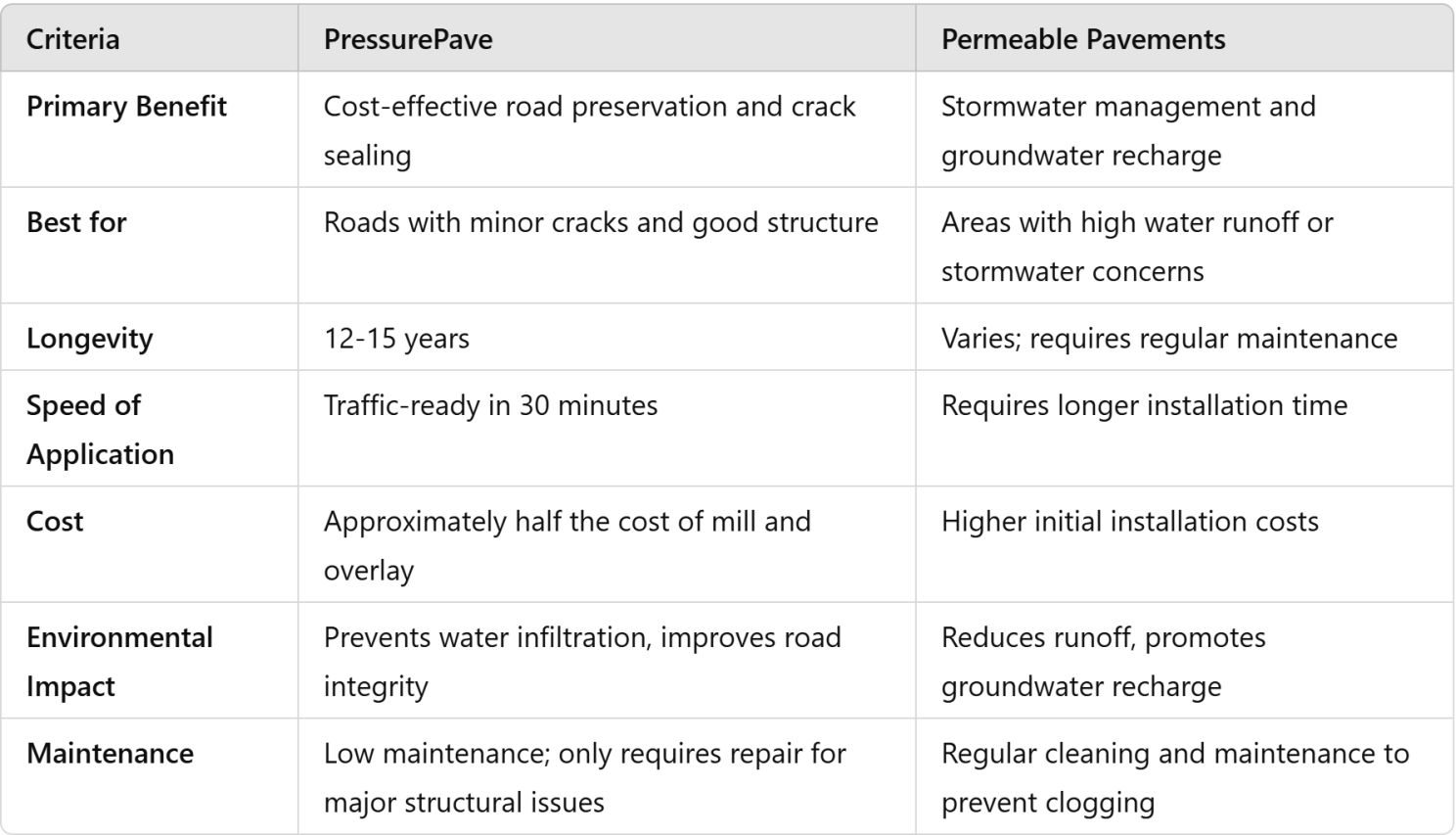

Conclusion: Choosing the Right Solution
Both PressurePave® and permeable pavements offer unique advantages for road and infrastructure management, but their suitability depends on the specific needs of a city or municipality.
- PressurePave® is ideal for cities looking for a cost-effective, long-lasting solution to treat cracked roads and improve rideability without compromising structural integrity.
-Permeable pavements, on the other hand, are the better choice for municipalities prioritizing stormwater management and sustainability, especially in areas where flooding or groundwater recharge is a significant concern.
By carefully evaluating the specific challenges and goals of your road preservation or stormwater management projects, city engineers and public works directors can make informed decisions that provide both short- and long-term benefits for their communities.
